Products > Telecom Systems > Business IP-PBX -> Large Enterprises PBX

LARGE ENTERPRISES

Overview In today's dynamic business environment, the business processes are getting complex raising the need of better availability and improved responsiveness at reduced operational costs. Globalization has enforced modern enterprises to work regardless the confines of geographical boundaries.

Matrix Enterprise IP-PBX range empowers Large Enterprises to experience the benefits of IP and GSM/3G with legacy networks and variety of subscribers. The range offers the flexibility and set of advance features to change as per the evolving needs of dynamic businesses. This empowers employees to work from home, start-up offices and remote locations uninterrupted.

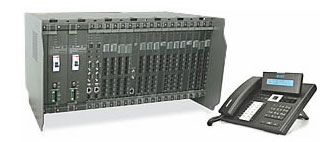

ETERNITY ME

IP-PBX for 10 to 999 IP users

The Hybrid (IP-TDM) platform supports up to 128 analog trunks, 64 GSM/3G ports, 32 ISDN BRI ports, 8 T1/E1/PRI ports and 32 VoIP trunks along with up to 512 analog users, 128 digital users and 999 IP users. AC and DC power supply, Optional Redundancy and Hot-swapping capabilities for expansion cards.

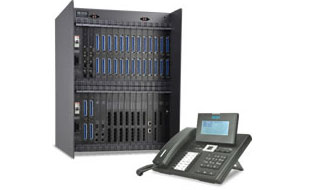

ETERNITY LE

IP-PBX for 10 to 1500 users

The Hybrid (IP-TDM) platform supports up to 128 analog trunks, 128 GSM ports, 32 ISDN BRI ports, 24 T1/E1 ISDN PRI ports and 32 VoIP trunks with up to 1344 analog users, 128 digital users and 1500 IP users. It supports optional hot-standby functionality for CPU and DC power supply with hot-swappable expansion cards.

Compare Models ETERNITY ME ETERNITY LE
VoIP Trunks 32 32
GSM/UMTS (3G) Trunks Up to 64 Up to 128
CO Ports Up to 128 Up to 128
ISDN T1/E1 PRI Channels Up to 240 Ch. (8 Ports) Up to 720 Ch. (24 Ports)
ISDN BRI Channels Up to 64 Ch. (32 Ports) Up to 64 Ch. (32 Ports)
IP Subscribers Up to 999 Up to1500*
Analog Subscribers Up to 512 Up to 1344
Digital Subscribers Up to 128 Up to 128
Auxiliary Ports

> 4 Digital Key Phone Ports

> One Ethernet Port

> Two RS232C Ports

> Analog Input and Output Port

> Digital Input and Output Port

> 4 Digital Key Phone Ports

> One Ethernet Port

> Two RS232C Ports

> Analog Input and Output Port



Voice Mail System 16 Ports with Auto-Attendant and dedicated Maibox for each type of extention (Analog, Digital, IP)
Power Supply

> 100-240 VAC, 47-63Hz

> 48 VDC

> 48 VDC
Redundancy Yes (AC & DC Power Supply and Control Cards) Yes (DC Power Supply and Control Cards)
Hot-Swap Yes (For Expansion Cards) Yes (For Expansion Cards)
Installation Wall Mount, Table Top Wall Mount, Table Top, 19" Rack Mount
